Indirect Identification of Human Control During Walking
Jason K. Moore j.k.moore19@csuohio.edu
Human Motion and Control Laboratory [hmc.csuohio.edu]
Cleveland State University, Cleveland, Ohio, USA
July 15, 2014
NCSSR Visiting Scholar Kickoff, Stanford, Palo Alto, California, USA
About
Currently a post doc in Ton van den Bogert's Human Motion and
Control Lab at Cleveland State University
Graduate work was at UC Davis (Hubbard/Hess: Sports Biomech Lab) and TU
Delft (Schwab: Bicycle Dynamics Lab) where I worked on the human
control identification during bicycle balancing
Active in the Scientific Python Community (SymPy /PyDy )
Our big picture questions
What are the fundamental control mechanisms used during human gait?
Zero moment point control: Asimo, etc?
Optimal control: maximize stability, minimize energy, etc?
Something else?
What control mechanisms can powered prosthetics utilize to recreate
able bodied human gait?
Maybe the previous are good choices, maybe not.
Is it possible to develop a data driven controller for a
particular prosthetic that behaves like a human, defects and
all?
What can common gait lab data from able-bodied humans tell us
about the control mechanisms during gait? Can we measure what we
really want to?
What kind of experiments can generate rich data needed to
identify controllers?
How can we identify these controllers from large sets of gait
data?
Maybe standard system identification methods?
Direct Approach
Indirect Approach
Our goal
Your browser does not support the video tag.
Desired Improvements
Natural gait patterns
Balance
Additional Benefits
Quantification of control can possibly be used to assess
patients with a new set of numbers
Clips collected from [1] , [2] , [3] , and [4] .
Our current approach
Collect common gait data from many gait cycles (500-1000)
During cycles, apply pseudo-random external perturbations to the
human
Assume a simple time varying linear MIMO black box control structure
Find the best fit of the control model to the data with a direct
approach
Test the resulting controller(s) in simulation and in actual
devices (in progress)

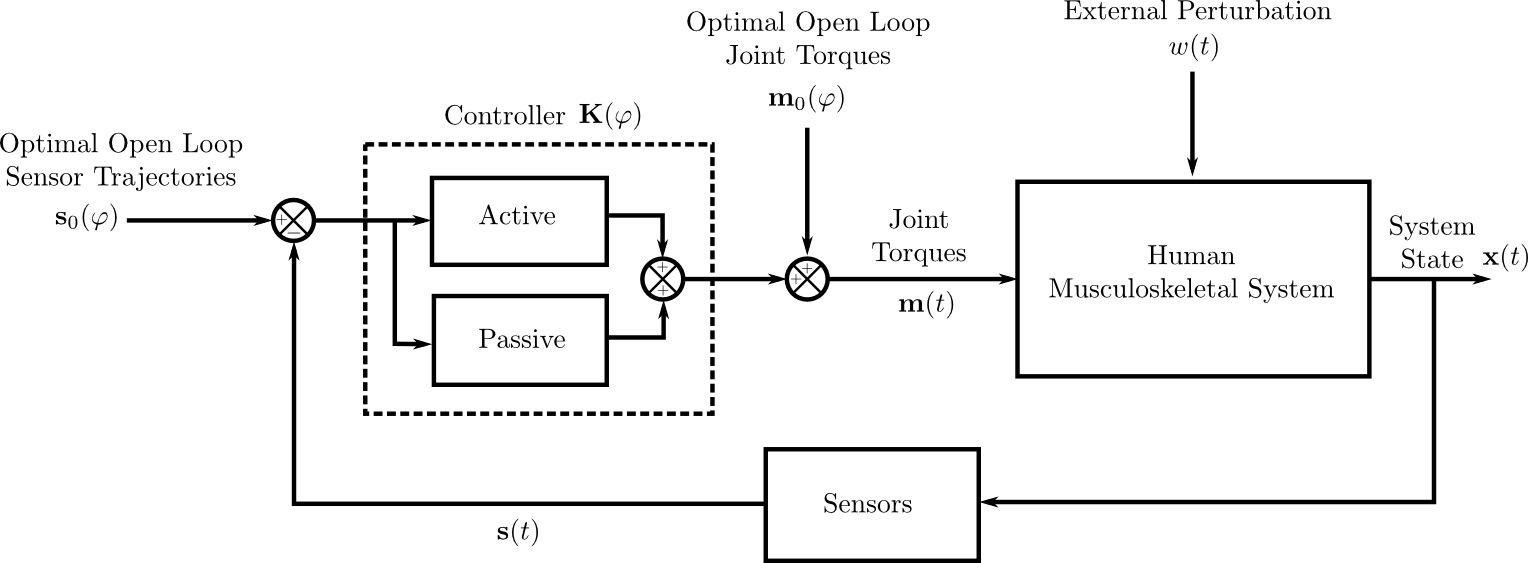

Idealized Gait Feedback Control
Estimated
\(\varphi\): Phase of gait cycle
\(\mathbf{s}(t)\): Joint angles and rates
\(\mathbf{m}(t)\): Joint torques
\(w(t)\): Random belt speed
Unknown
\(\mathbf{K}(\varphi)\): Matrix of feedback gains
\(\mathbf{s}_0(\varphi)\): Open loop joint angles and rates
\(\mathbf{m}_0(\varphi)\): Open loop joint torques
Controller Equations
\[
\mathbf{m}(t) = \mathbf{m}_0(\varphi) + \mathbf{K}(\varphi) [\mathbf{s}_0(\varphi) - \mathbf{s}(t)] \\
\]
\[
\mathbf{m}(t) = \mathbf{m}^*(\varphi) - \mathbf{K}(\varphi) \mathbf{s}(t)
\]
where
\[
\mathbf{m}^*(t) = \mathbf{m}_0(\varphi) + \mathbf{K}(\varphi) \mathbf{s}_0(\varphi)
\]
Gain Matrix: Planar Walker
Sensors
Assume that a lower limb exoskeleton can sense relative orientation
and rate of the right and left planar ankle, knee, and hip angles.
\(\mathbf{s}(t) = \begin{bmatrix} s_1 & \dot{s}_1 & \ldots & s_q & \dot{s}_q \end{bmatrix} \) where \(q=6\)
Controls (plant inputs)
Assume that the exoskeleton can generate planar ankle, knee, and hip joint
torques.
\(\mathbf{m}(t) = \begin{bmatrix}m_1 & \ldots & m_q \end{bmatrix} \) where
\(q=6\)
Gain Matrix [Proportional-Derivative Control]
\(
\mathbf{K}(\varphi) =
\begin{bmatrix}
k(\varphi)_{s_1} & k(\varphi)_{\dot{s_1}} & 0 & 0 & 0 & \ldots & 0\\
0 & 0 & k(\varphi)_{s_2} & k(\varphi)_{\dot{s_2}} & 0 & \ldots & \vdots\\
0 & 0 & 0 & 0 & \ddots & 0 & 0\\
0 & 0 & 0 & \ldots & 0 & k(\varphi)_{s_q} & k(\varphi)_{\dot{s}_q} \\
\end{bmatrix}
\)
Linear Least Squares
With \(n\) time samples in each gait cycle and \(m\) cycles there are
\(mnq\) equations and which can be used to solve for the \(nq(p+1)\)
unknowns: \(\mathbf{m}^*(\varphi)\) and \(\mathbf{K}(\varphi)\). This is
a classic overdetermined system of linear equations that can be solved
with linear least squares.
\[\mathbf{A}\mathbf{x}=\mathbf{b}\]
\[\hat{\mathbf{x}}=(\mathbf{A}^T\mathbf{A})^{-1}\mathbf{A}^T\mathbf{b}\]
\(n=20,m\sim=400,q=6,p=12\)
\(\mathbf{A}\) (48000 x 1560): joint angles and rates
\(\mathbf{b}\) (48000 x 1): joint torques
\(\mathbf{x}\) (1560 x 1): \(\mathbf{K}(\varphi)\) and \(\mathbf{m}^*(\varphi)\)
Random Belt Speed Variations
Your browser does not support the video tag.

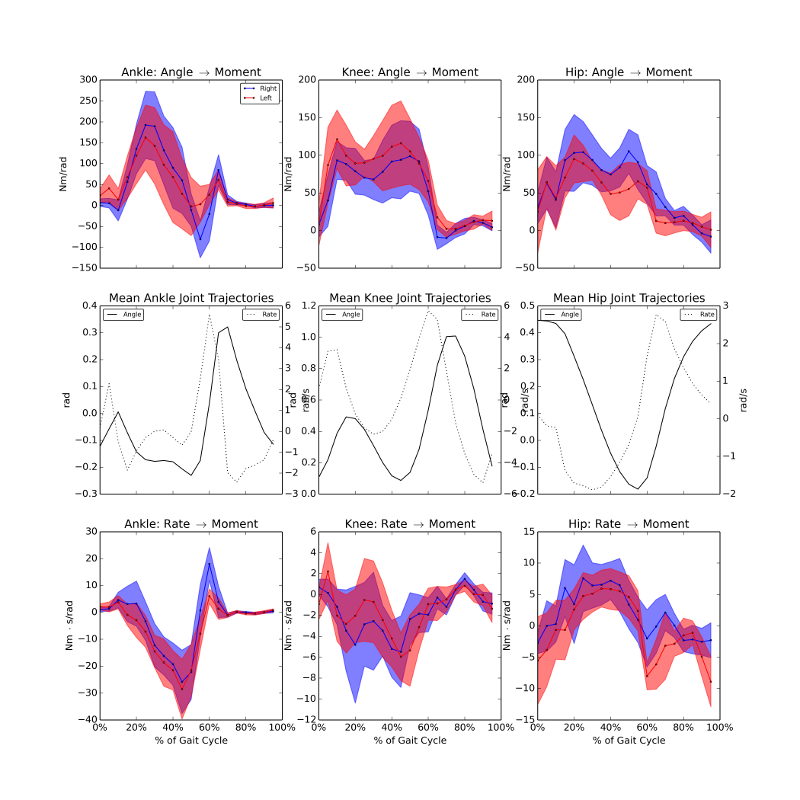

Gains: v=0.8 m/s

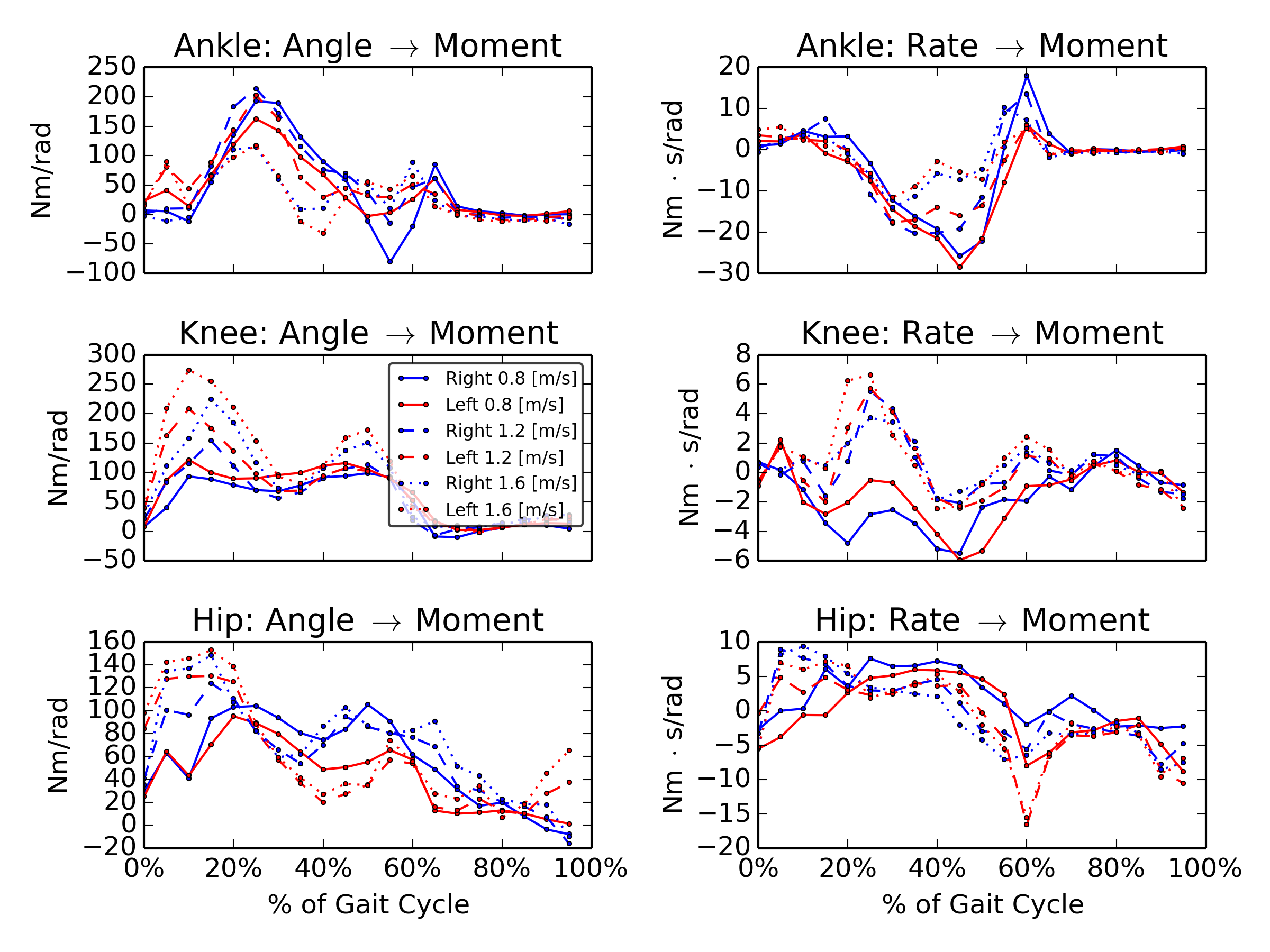

Gain variation with speed
How good is the model?
Can we put this controller into an exoskeleton?
Maybe
Issues
Difficult to validate the control law
Does the result reflect the inverse of plant or the controller?
In general, a plant is required to validate controller
Other approaches need to be explored
Indirect Identification
Choose a plant model
Choose a controller structure (black or grey box)
Formulate the close loop system equations of motion
Formulate a cost function based on minimizing the error in the
simulated outputs and the gait measurements (marker coordinates, GRFs)
Search for optimal controller that reproduces the data
Potential optimization methods:
simulation + genetic algorithms (shooting)
discretization + nonlinear programming (direct collocation)
Controller Choice
Grey box
Feedback/feedforward elements
Muscle-reflex control [Geyer et. al 2010]
Neuro time delay
Black box
Full state/output feedback
Gait phase gain scheduling
Neural networks [Tan et. al 2014]
Shooting
Free parameters
\( \mathbf{\theta} = \mathbf{x}_0, p_1, ..., p_q\), \(q = 100\) to \(300\)
Gradient free parallel optimization methods
Cost function
Minimize model error wrt measurements \( J(\theta) = \sum_{i=1}^M
|| y_{mi} - y_i || \)
Penalize large trajectory excursions
Penalize rapid energy use
Computational Costs
1000-3000 iterations for 10 second simulation
10-12 hr computational time for convergence
See Wang et.al 2010 and Geijtenbeek et. al 2013
I need a 25x to 50x simulation speedup (480 second simulation) to have
1 day turn around on solutions
Wang et. al 2010
http://doi.acm.org/10.1145/10.1145/2185520.2185521
Geijtenbeek 2013
http://goatstream.com/research/thesis/PhD%20Thesis%20Thomas%20Geijtenbeek.pdf
Direct Collocation Variables
\(\mathbf{x}\): state vector (joint angles and angular rates)
\(\mathbf{u}^u\): unknown input vector (open loop joint torques)
\(\mathbf{u}^k\): known input vector (belt speed perturbation)
\(p_1, \ldots, p_q\): controller parameters
\(\mathbf{y}_m\): measured output variables (marker locations, ground reaction loads)
\(\mathbf{y}\): model output variables (marker locations, ground reaction loads)
\(M\): # measured time samples
\(N\): # discretized samples (50-100 for gait cycle)
\(n\): # states (~18 for "simple" planar walker)
\(m\): # unknown inputs (~9 open loop joint torques)
\(p\): # known inputs (1 belt speed)
\(q\): # free model constants (100-300 controller parameters)
Direct Collocation Model Formulation
Free Parameters
\( \theta = \mathbf{x}_1, \ldots, \mathbf{x}_N, \mathbf{u}^u_1,
\ldots, \mathbf{u}^u_N, p_1, \ldots, p_q \) ~1M
Cost Function and Gradient
\( J(\theta) = \sum_{i=1}^M || y_{mi} - y_i || \)
Constraints and Jacobian
\(0 = \mathbf{f}(\dot{\mathbf{x}}, \mathbf{x}, \mathbf{u}, t)\) has to
hold at each discrete time instance
Backward Euler Discretization
\( 0 = \mathbf{f}_j(\mathbf{x}_j, \mathbf{x}_{j-1}, \mathbf{u}^k_j,
\mathbf{u}^u_j, \mathbf{u}^u_{j-1}, p_1, \ldots, p_q) \in
\mathbb{R}^n \quad j=2,\ldots,N \)
\(N \approx 1,000,000\)
Direct Collocation Solution
Plant Model
Simple 2D torque actuated 10 DoF planar walker (Opensim gait10dof18musc)
Control Model
A simpler version of the phase muscle-reflex controller in Wang et. al 2010
Simple PD gain gait phase scheduled controller + optimal open loop
joint torques
Data
2D marker locations
Ground reaction loads
Solvers
Interior Point Optimization: IPOPT (included in Simbody)
Sequential Quadratic Programming: SNOPT
Other ...
Direct Collocation Hurdles
Computational speed with ~1,000,000 constraints
Efficient sparse Jacobian computations: Simbody/Opensim only offer
numerical gradients. Automatic differentiation is an option.
Local minima
Initial guesses
Plan
Week 1-2: Develop (or use) a closed loop planar walker system in Simbody/Opensim
Week 3: Evaluate which optimization method is most tractable
Week 3-4: Implement the identification method
Week 5: Hack solutions to everything that doesn't work as
planned
Goal
Desired result is to let the data tell us what the controller is
