What The Bicycle Can Tell Us About Human Control ΒΆ

Jason K. Moore

EME 1 Lecture

November 28, 2016

In 2004, I wanted to be

Sam Whittingham, world record (~80 mph)

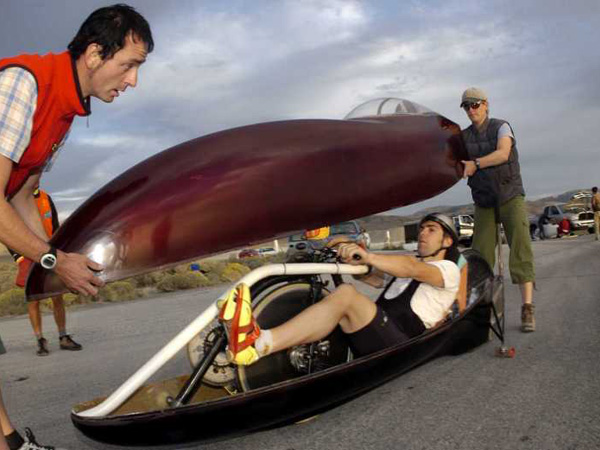

Varna passing by

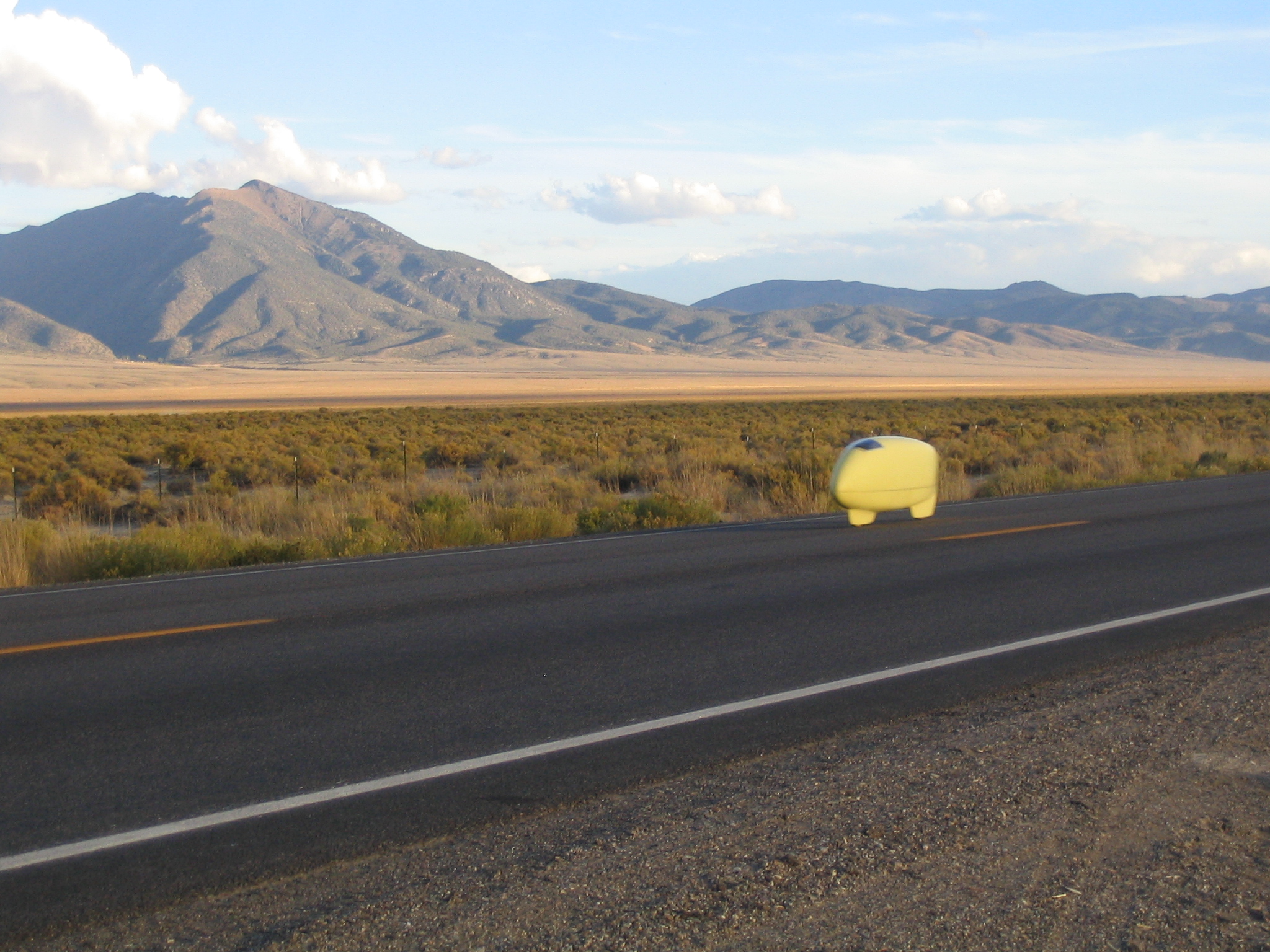

Evie Before: 6:49 AM

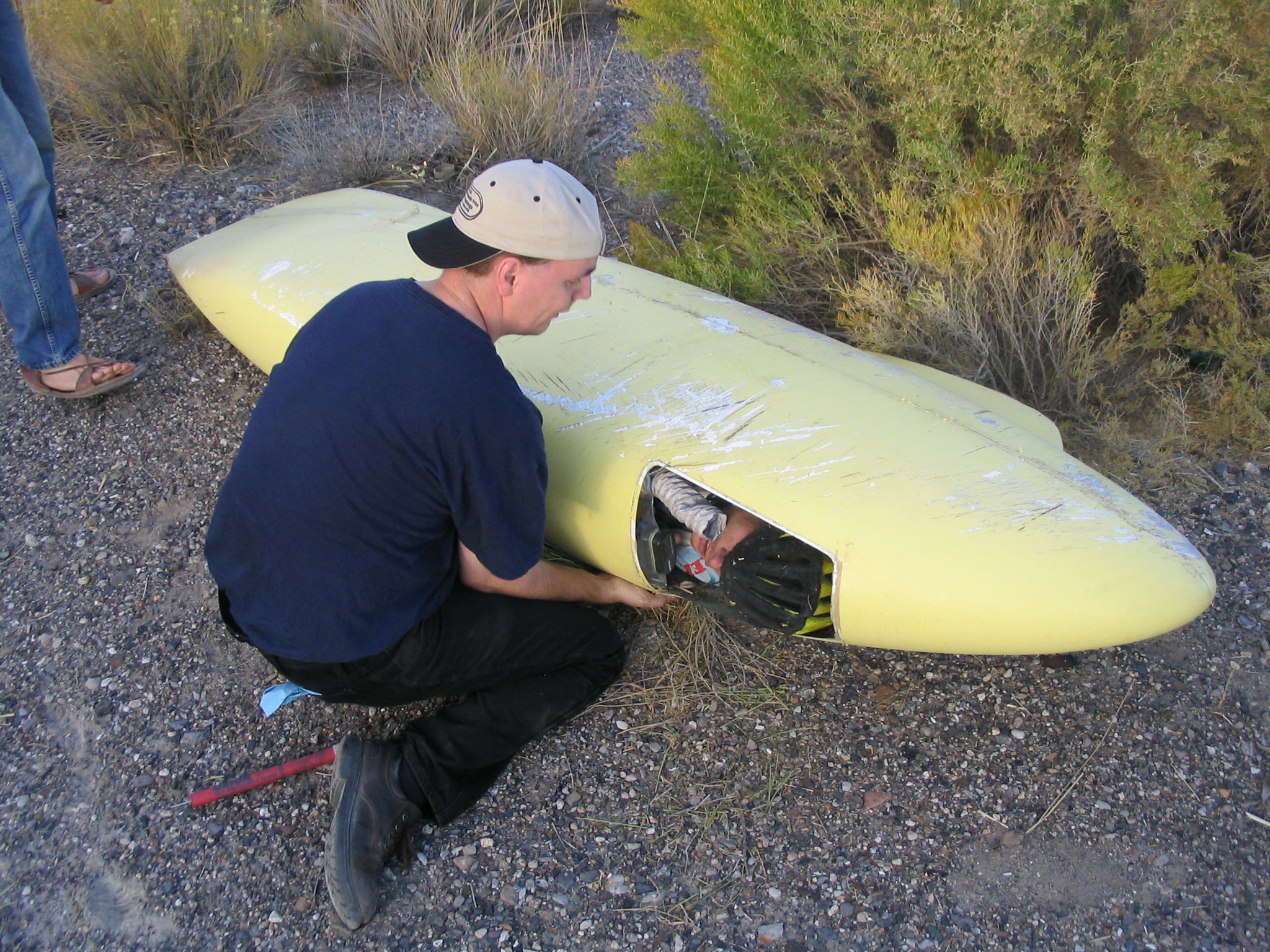

Evie After: 6:50 AM

As a start, we engineered this

But it was quite hard to balance

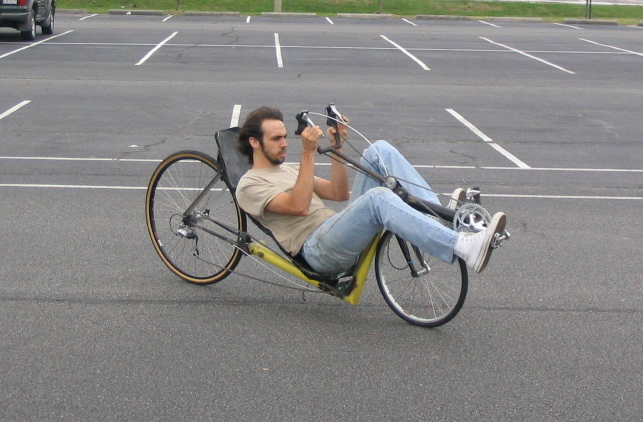

With practice you can learn

Questions raised

  • Why is one bicycle harder to control than another?
  • How can we design a bicycle such that it is easy to control?

Little did I know I'd be thinking about this for 10+ years

A little about bicycle dynamics

Bicycles are curious machines

  • Bicycles are the most efficient from of human transportation (lowest energy per person per distance)
  • In general, you have to balance a bicycle before directing it from point A to B
  • It is possible to balance a bicycle without touching the handlebars
  • People can do all kinds of stunts on bicycles

Bicycle Balet

Extreme Sports


If you want you bicycle to turn to the left, what direction do you turn the handlebars?

Countersteering video

Why do you have to countersteer?

If you are in a steady right hand turn, you must be leaning to the right. So, the only way to initiate a right hand lean is to move the wheel contact points out to the left.

Think about balancing a broom.

Newton's Laws are able to predict the need to countersteer

Another curiosity

Bicycles can be stable

Also predicted by Newton's Laws!

$F = m a$

Most bicycles are stable once they reach a certain speed, i.e. if you try to knock it over it rights itself.

Bicycle at $v=0$

Bicycle at $v=3$ m/s

Bicycle at $v=4$ m/s

Bicycle at $v=6$ m/s

What makes a bicycle stable?

Gyroscopic Action

"The wheel is a gyroscope so it always steers in the correct direction"

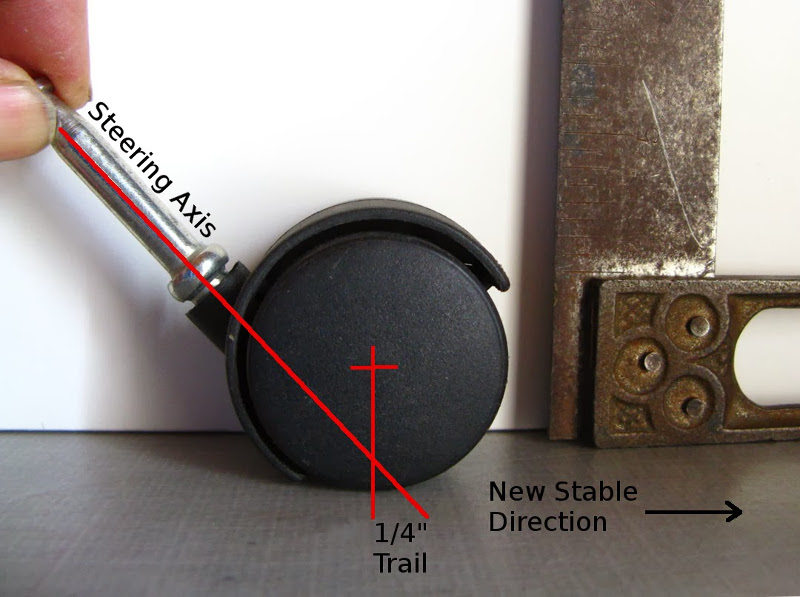

Caster Trail

"The front wheel of a bicycle trails behind the steering axis just like a caster on an office chair, so the wheel always corrects the steering."

What if gyroscopic action is removed?

What if gryoscopic action and caster are removed!

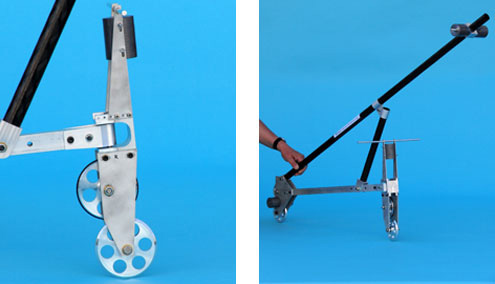

TU Delft Two Mass Skate Bicycle

TMS Video

What if gyroscopic action is increased?

What happens when human is in control?

Human Sensory Feedback


  • We sense our body position, orientation, and configuration with our eyes
  • We sense our body's configuration with muscle spindles
  • We sense our orientation wrt to gravity, orientation rate, and angular acceleration with the utricle in our ear
  • We sense forces being applied to our body with our proceptive system


  • Time delays from sensing to acutation
  • Limits in acutation forces
  • Limits in frequency of motion

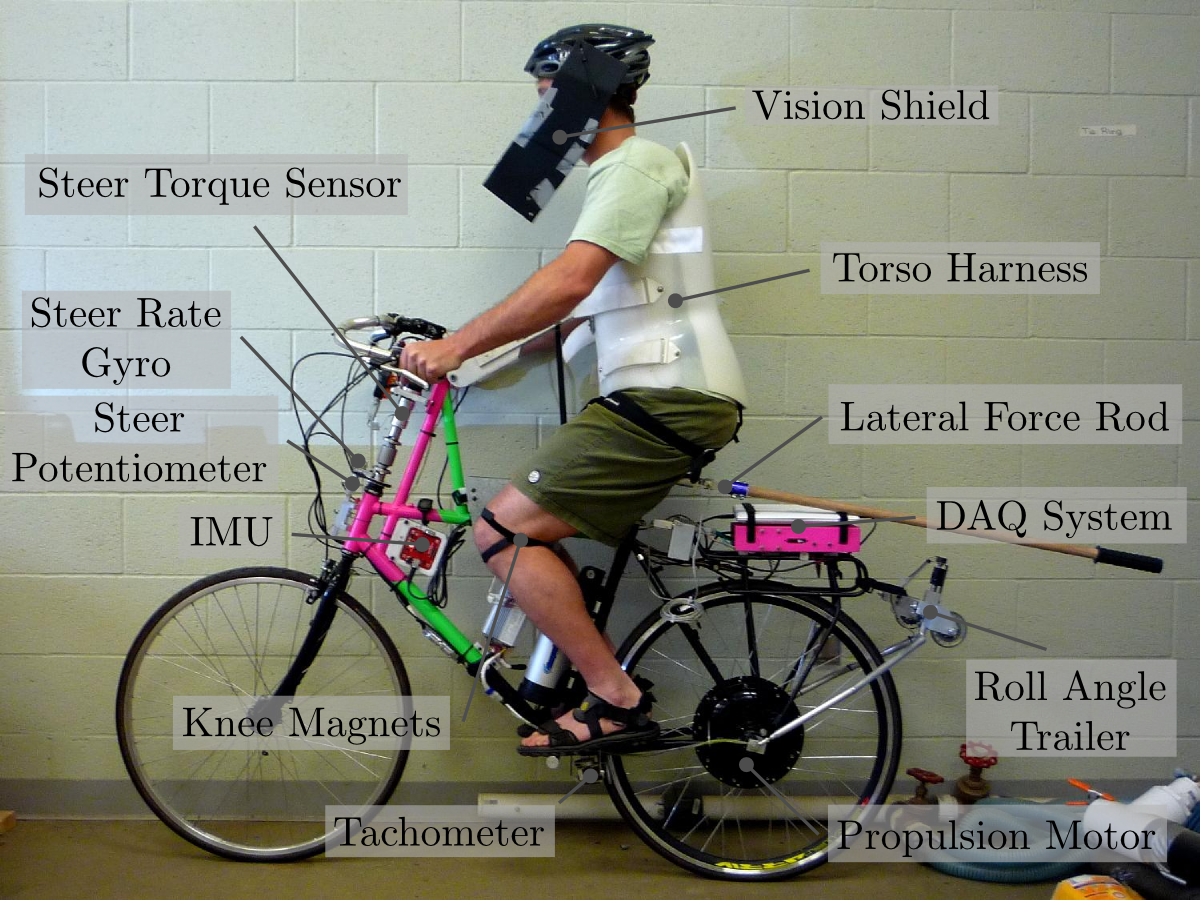

Use of instrumented bicycles


Tracking Experiments

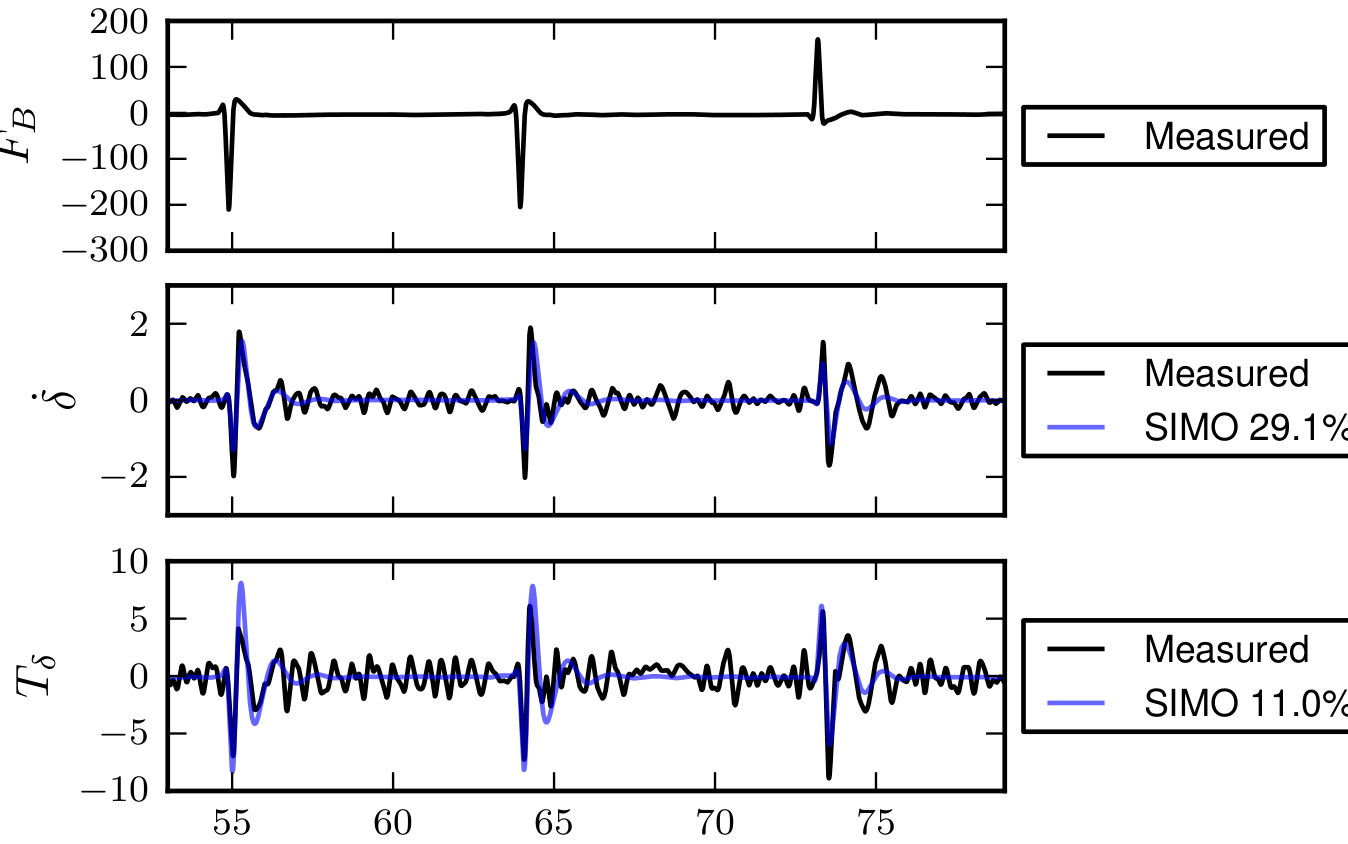

Perturbation Response Experiments

Mathematical models of human control

Feedforward and feedback mathematical models can predict the human sensing and actuation relationship.

Why does any of this matter?

  1. The dynamics of the bicycle describe how it moves when forces are applied to it.
  2. Humans apply forces to a bicycle to make it transport them where they want to go.
  3. The dynamics can be changed by changing the vehicles physical properties, i.e. mass, geometry, tires, etc.

This leads to my research interests:

How do we design human controlled machines (e.g. vehicles) such that they perfectly compliment the human's intentions?

The approach

  • Create mathematical models that predict how machines move if forces are applied to them.
  • Create mathematical models that predict how a person will actuate their muscles to complete if they sense certain cues.
  • Design optimal machines with optimal control systems such that the human can easily, efficiently, and accurately control the machine.

Optimal Bicycle Designs

Design can be treated as an optimization.

Once you have mathematical definitions of a system you can then use mathematical and computational techniques to answer questions like:

"What would the geometry of the vehicle be if it was the easiest to control?"

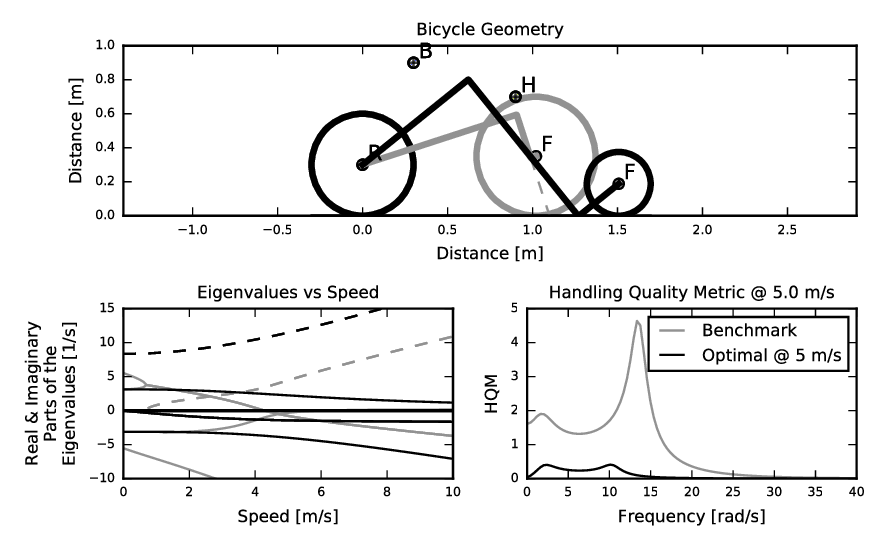

Example Optimal Geometry

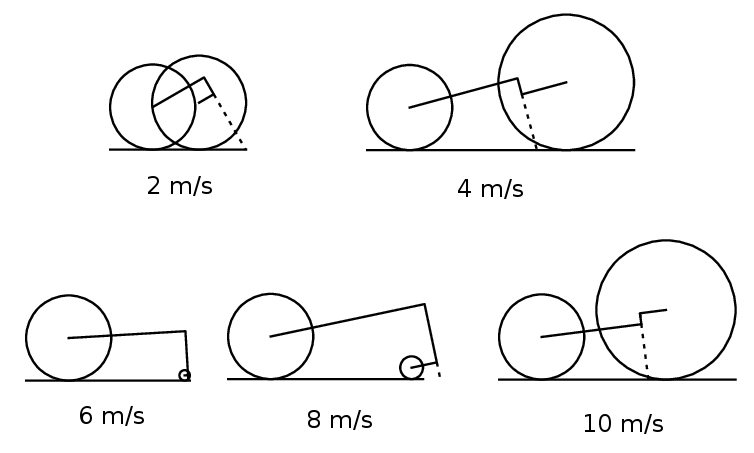

Geometries for Different Speeds

Other Applications

Synergistic Control of Vehicles

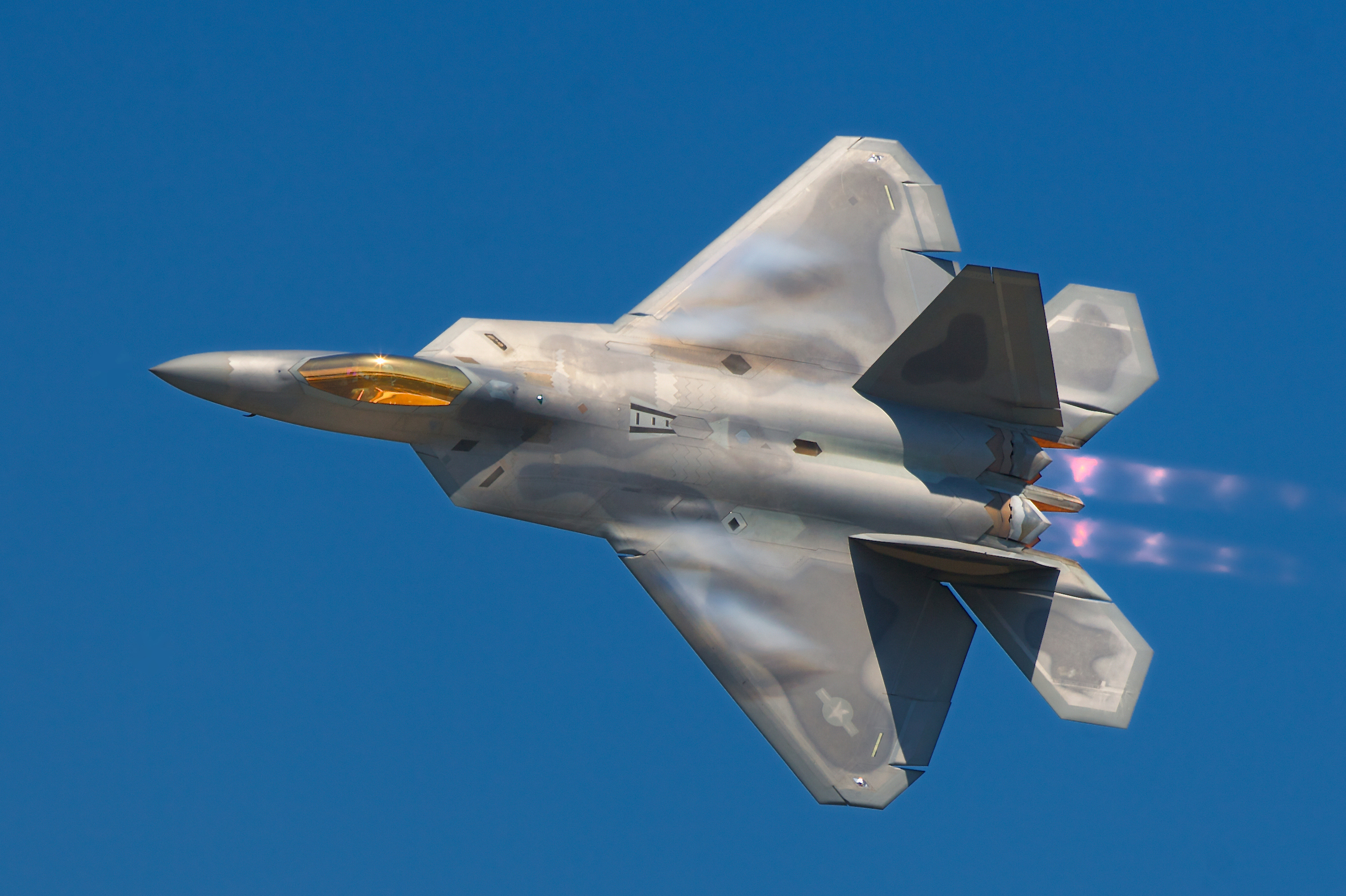

F-22 Raptor

Self-balancing Electric Motorcycles

BMW's Concept

Powered Exoskeletons

Parker Hannafin Indego Exoskeleton

More Experiments

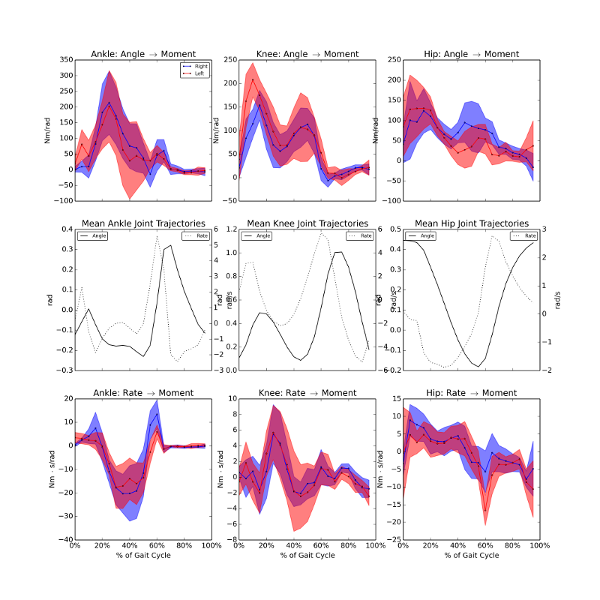

Identified Walking Controller
