ENG 004 Lecture 18, Nov 29, 2012



Project Requirements

Auxiliary View

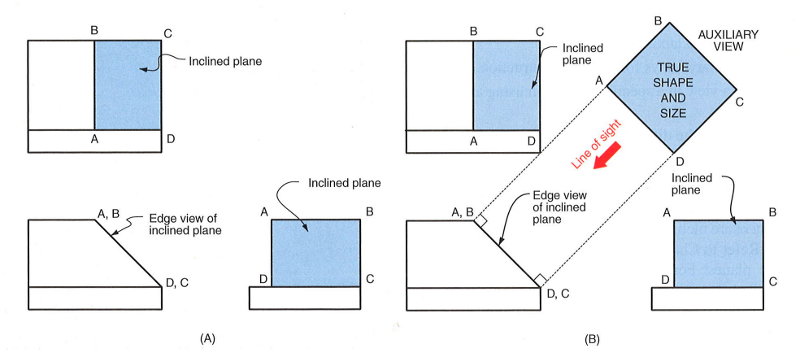

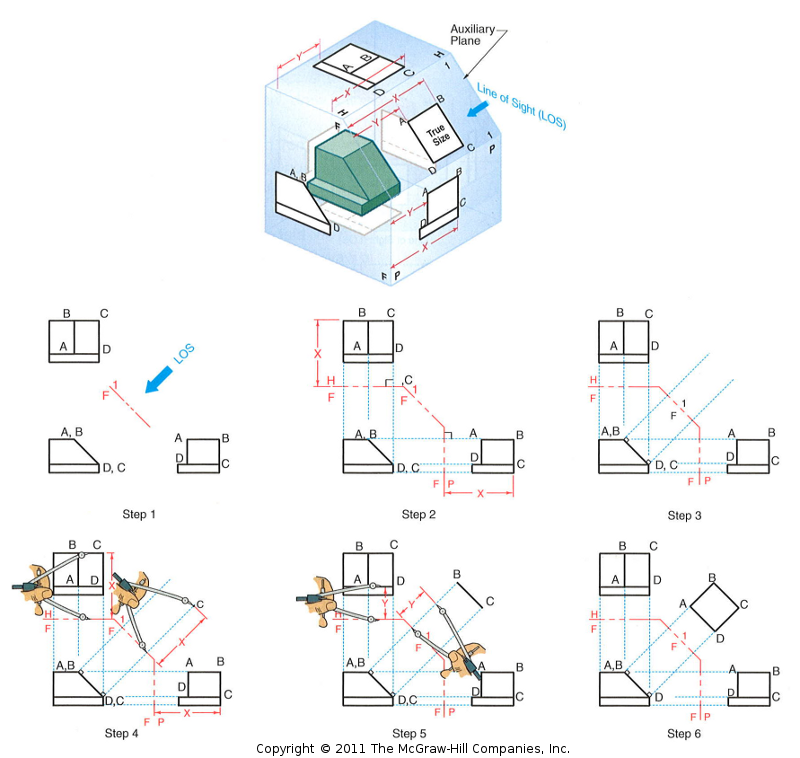

An orthographic view that is projected onto any plane other than one of the six principal views of an object.

Used to show detail in its true size when this detail is inclined relative to the principal planes.

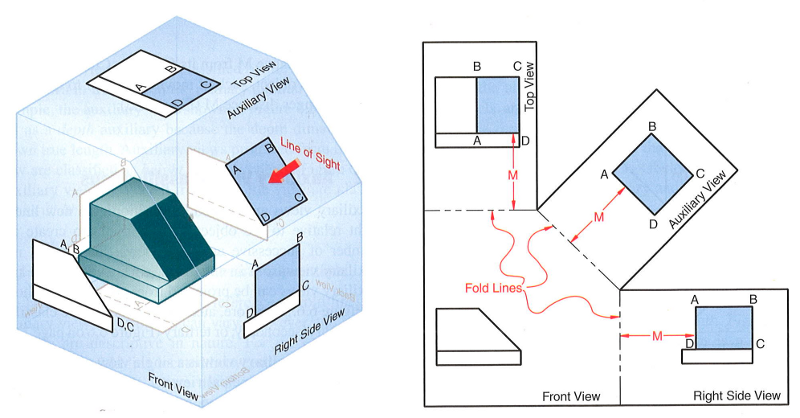

Folding Lines

Represents orthogonal intersections of projects planes before unfolding. The are between adjacent views

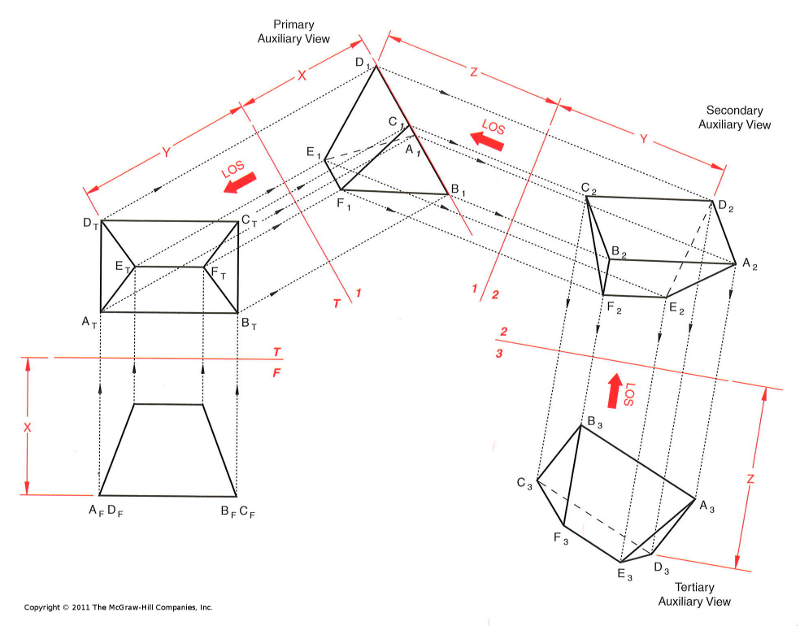

Primary, Secondary, Tertiary Views

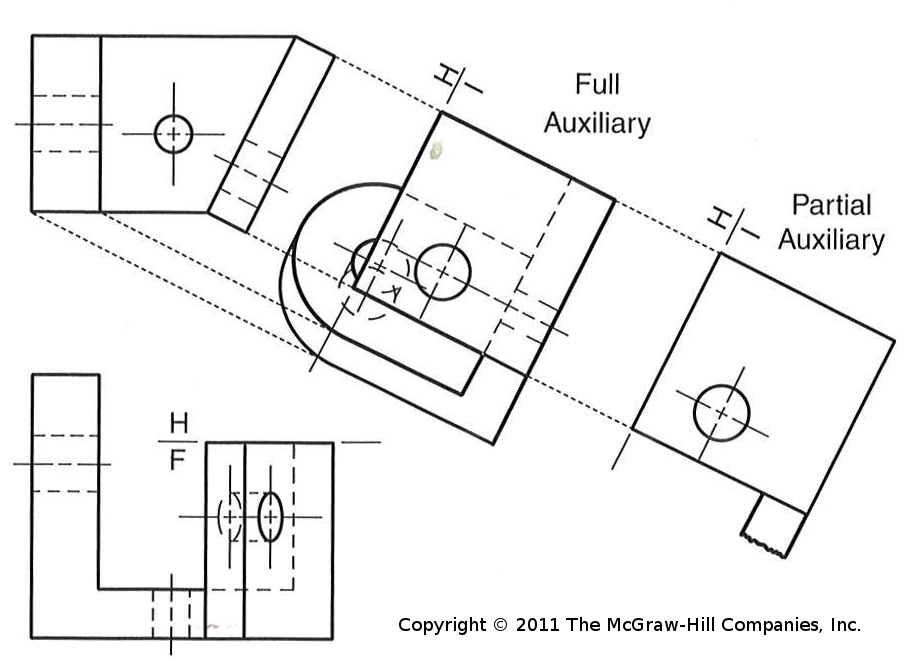

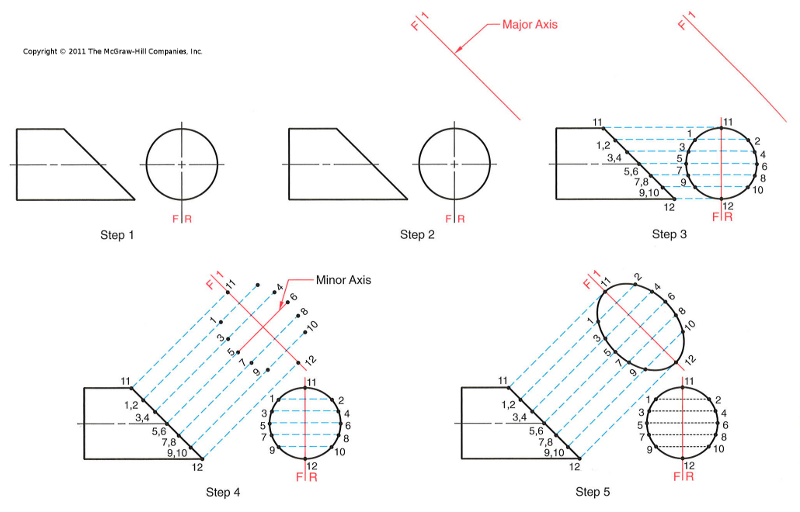

Partial Auxiliary View

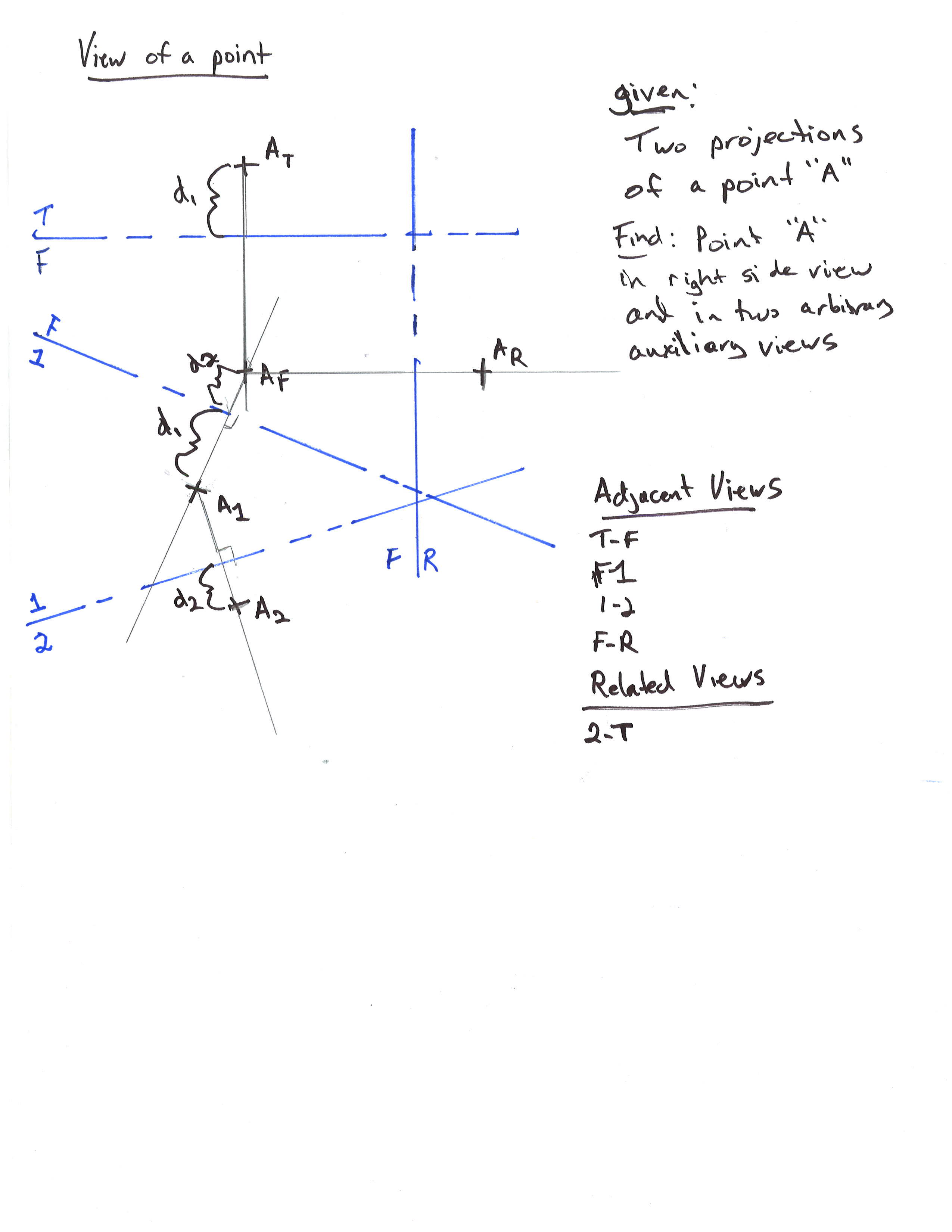

Auxiliary View of a Point

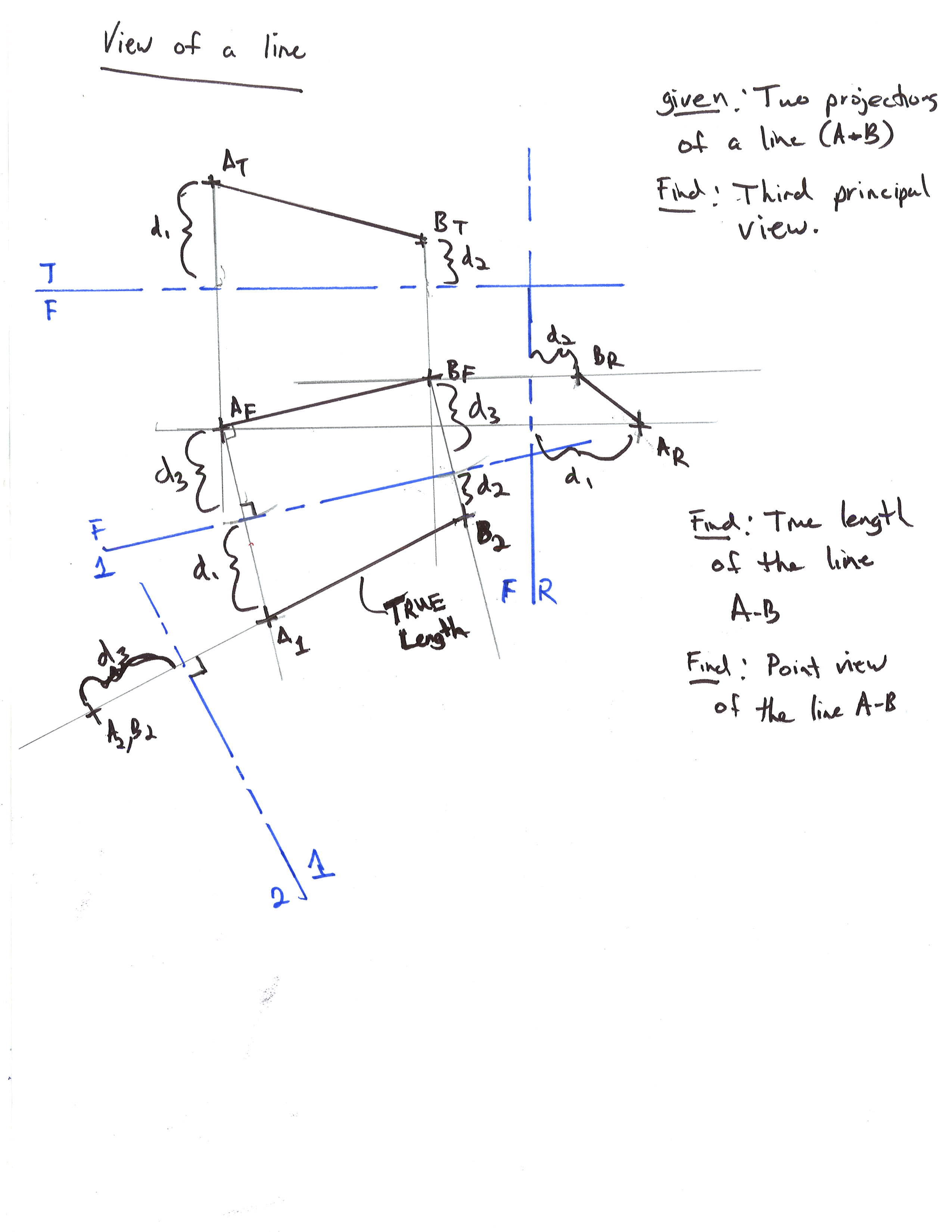

Auxiliary View of a Line

Auxiliary View of a Plane
