Due Thursday December 6 at beginning of lecture.

Grading: 10 points total

Section View (5 points)

Create a section view of the part shown in Figure A using the suggested cutting plane shown in Figure B. Do this by hand, i.e., not in CAD.

media/images/section-hw-01.png

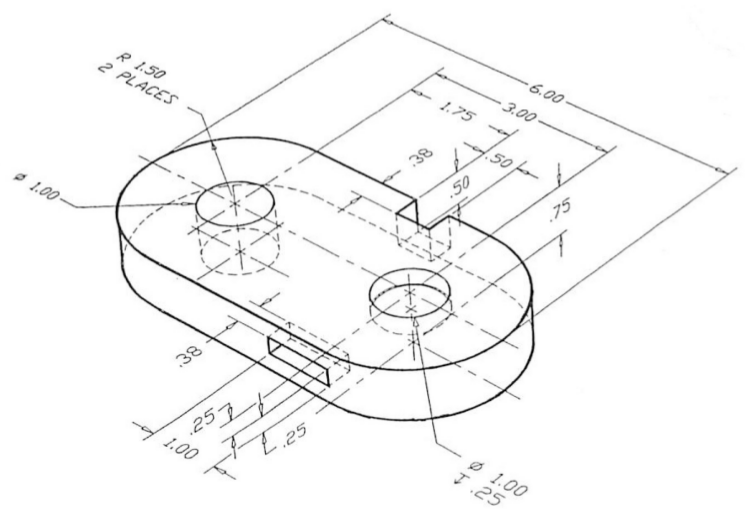

Figure A

media/images/section-hw-02.png

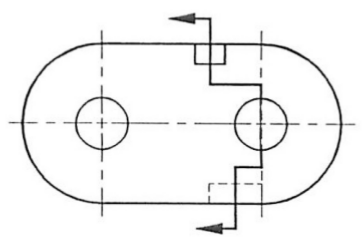

Figure B

Auxiliary View (5 points)

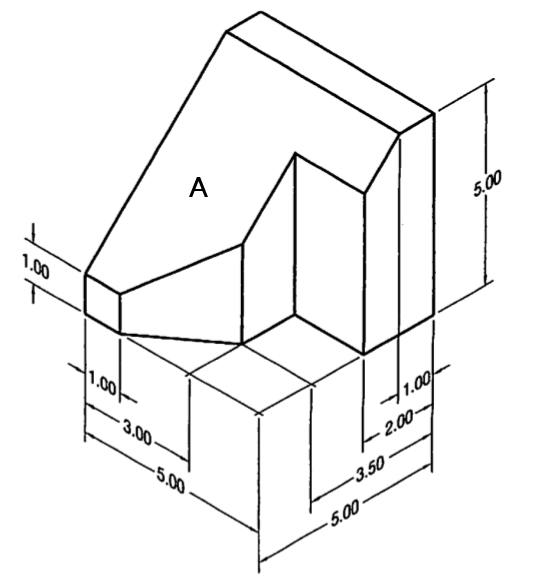

Create a typical multiview drawing along with a full auxiliary view showing the inclined plane, A, shown in the isometric below. Do this by hand, i.e., not in CAD.

media/images/auxiliary-hw.png
